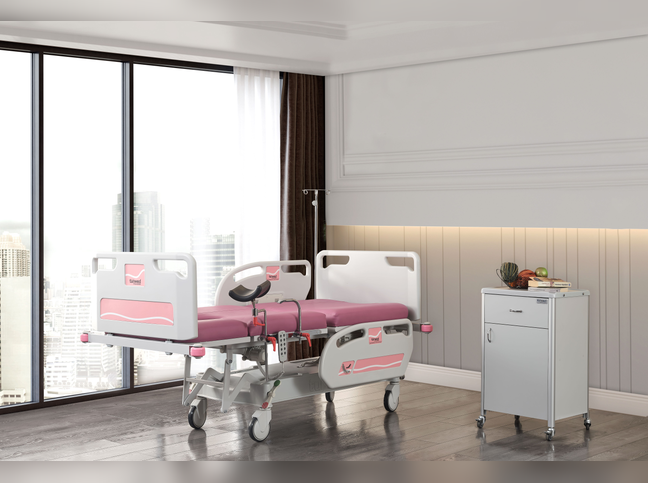

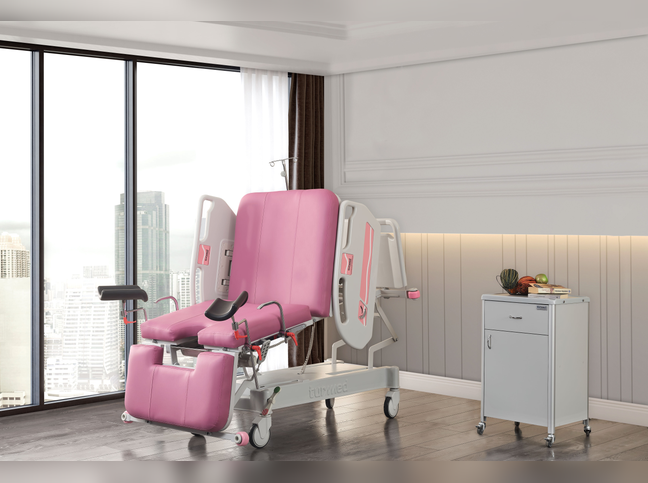

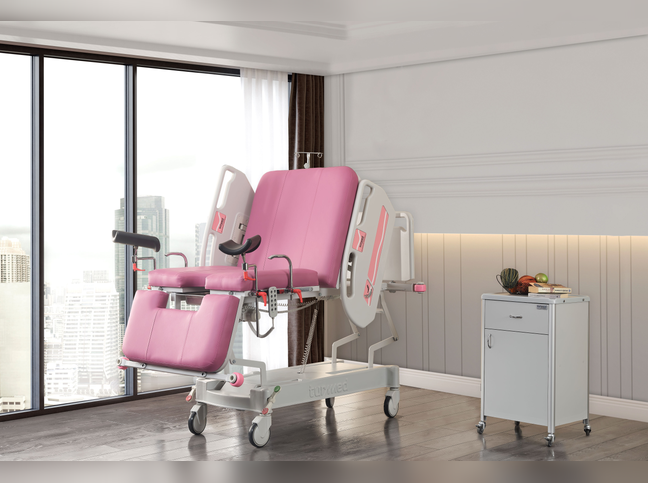

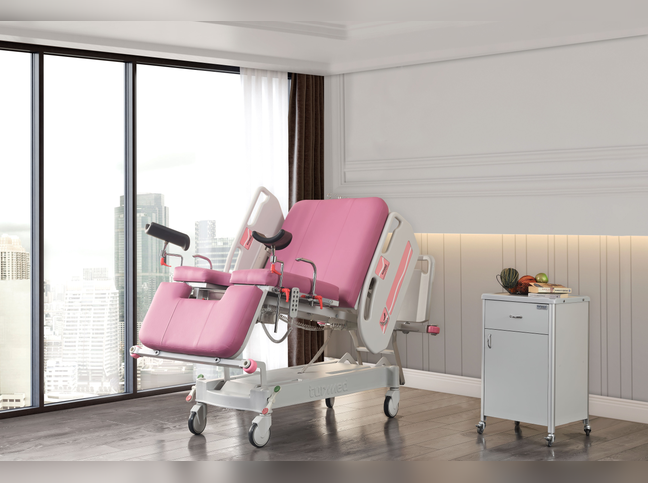

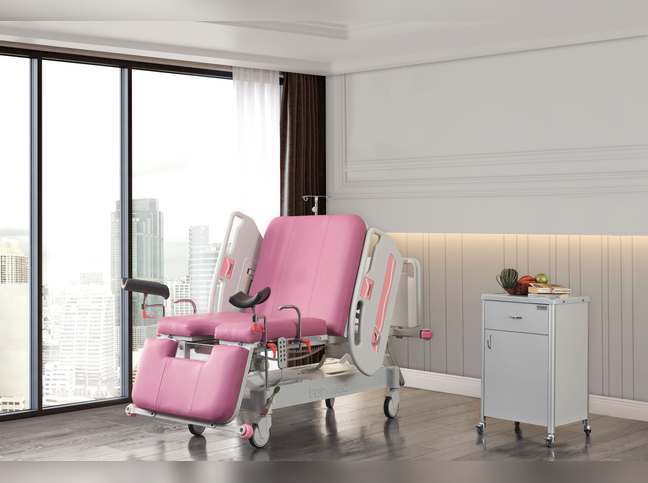

Gynecological Table & Blood Collection Chair
Product Code : TM-D 4065
TECHNICAL DOCUMENT
• Height adjustment. (motor)
• Backrest adjustment. (motor)
• Thigh rest adjustment. (motor)
• Auto-regression system.
• Trendelenburg and reverse trendelenburg. (motor)
• Handset control.
• Leather (vinlex) mattress platform.
• Knee support bracket. (polyurethane)
• ABS head and foot boards. (detachable)
• ABS side rails.
• Angle indicator. (backrest)
• Lifting handle.
• Waste collection container. (stainless steel)
• IV pole. (height adjustable)
• Accessories holders.
• Castors with central brake and direction lock systems.
• Protective corner bumpers.
• Electrostatic powder coated frame. (RAL 7035)
Overall Dimensions:
1070 x 2010 mm
Bed Platform:
845 x 1900 mm
Bed Height Adjustment:
725 - 1015 mm
Maximum Back Angle:
70°
Maximum Knee Angle:
40°
Trendelenburg / Reverse Trendelenburg:
+ 12 ° / - 12 °
Autocontour (back - knee):
75 mm
Side Rail Height:
270 mm
Headboard Height:
335 mm
Under Bed Clearance:
190 mm
Wheels:
150 mm
Safe Working Load:
150 kg
Carrying (Loading) Capacity:
300 kg
• Weight scale system.
• Battery.
• Manuel CPR at backrest.
• Intagrated side rail controls.
• Handset control with magnetic lock.
• Nurse control.
