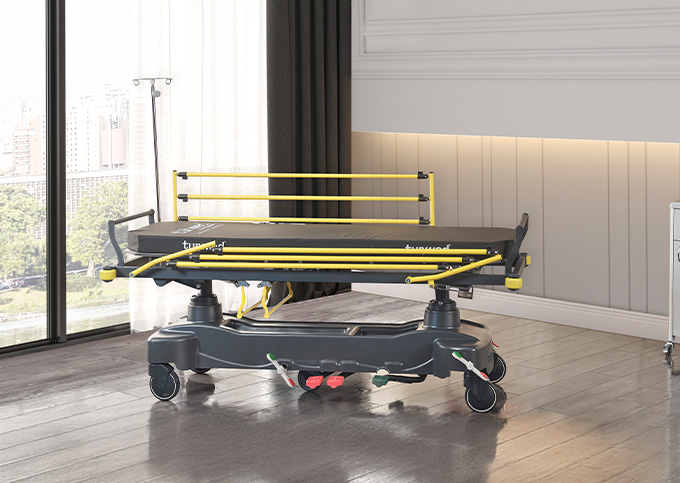

Product Code : TM-C 3033
TECHNICAL DOCUMENT
• Metal Body.
• Bed platform. (compact laminate HPL)

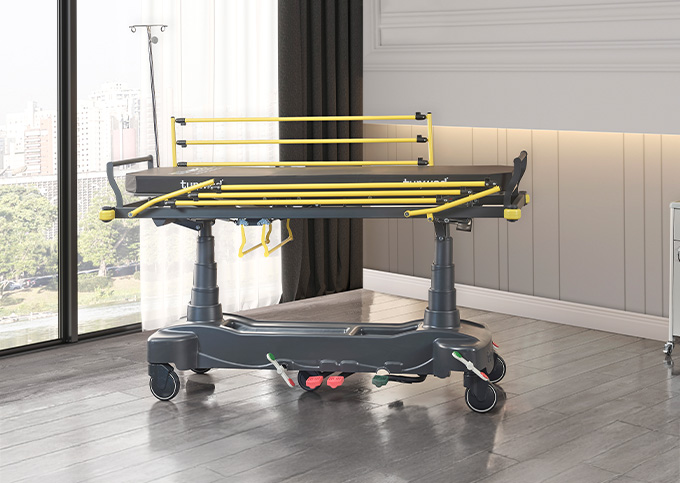

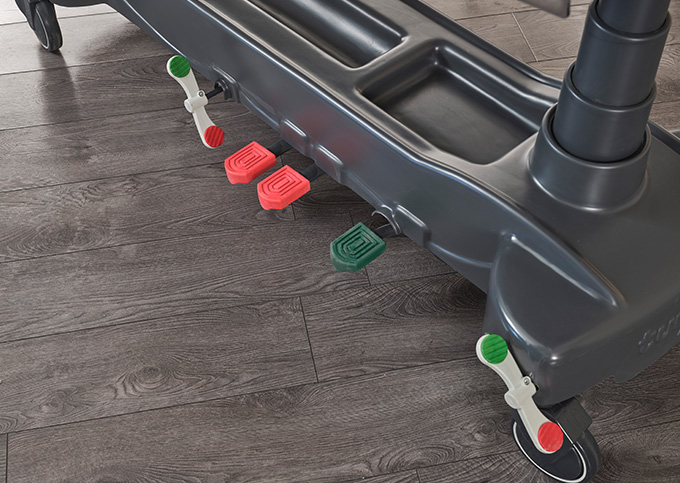

• Height adjustment. (hydraulic)

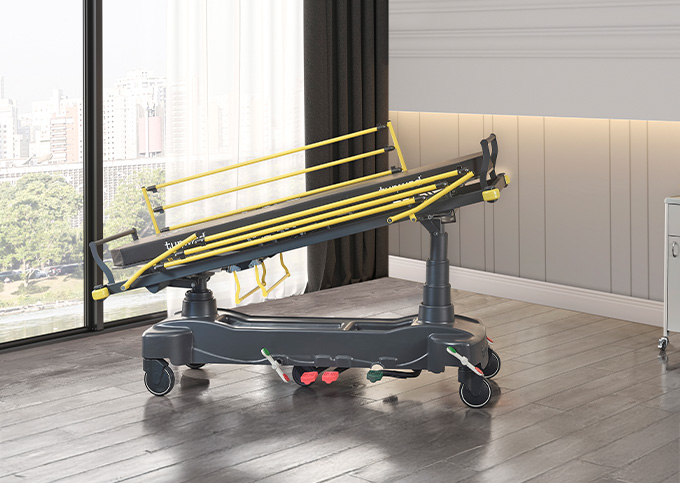

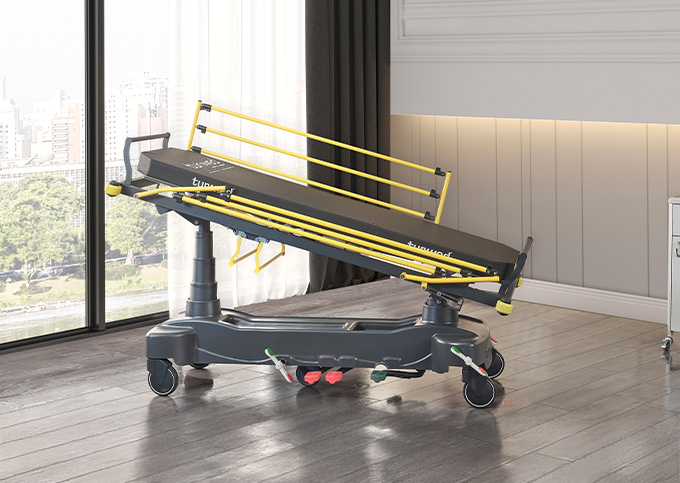

• Trendelenburg and Reverse trendelenburg.(hydraulic)

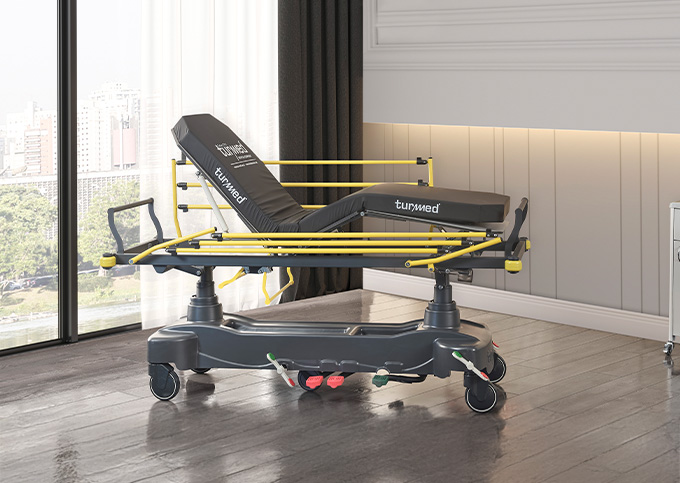

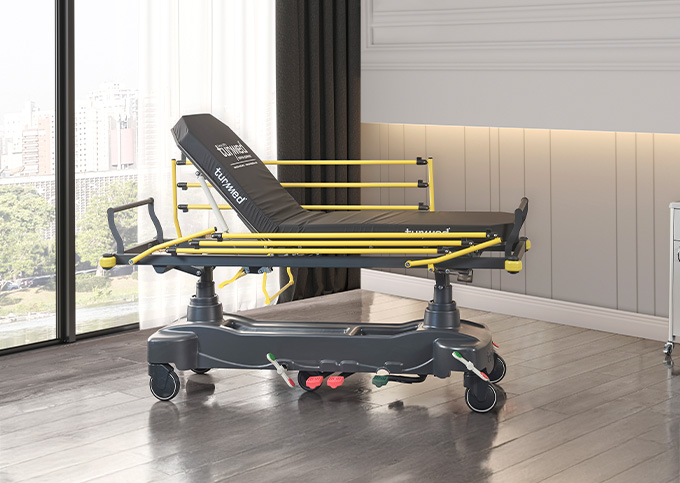

• Backrest adjustment (shock absorber)
• Knee adjustment. (shock absorber)
• Toe. (manual)
• Railings. (Metal)
• Mattress: Liquid-tight, flame-retardant, anti-bacterial PU cover
• Serum hanger (height adjustable).
• Fifth wheel. (easy maneuvering and turning)
• Wheels with central directional lock.
• Impact bumper wheels.
• Accessory slots.
• Tube carrying apparatus.
• Material compartment.
• Electrostatic powder coated body. (RAL 7016 and 1023)
External Dimensions | 780 x 1965 mm |
Mattress platform | 600 x 1850 mm |
Mattress thickness | 80 mm |
Height adjustment | 740 – 1070 mm |
Backrest max. angle | 70° |
Footrest max. angle | 30° |
Trendelenburg / Rev. Trendelenburg | +18° / -18° |
Height of side rails | 255 mm |
Underbed clearance | 135 mm |
Castors diameter | 150 mm |
Safe working load | 125 kg |
Max. Loading capacity | 250 kg |
• Safety belt.
• X-Ray cassette location
