Bedstead & Bed & Accessory

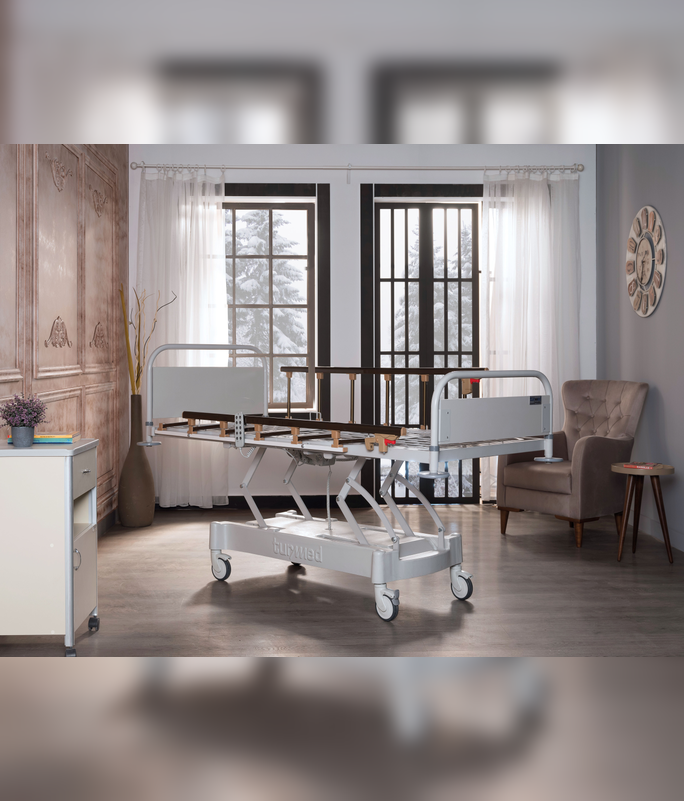

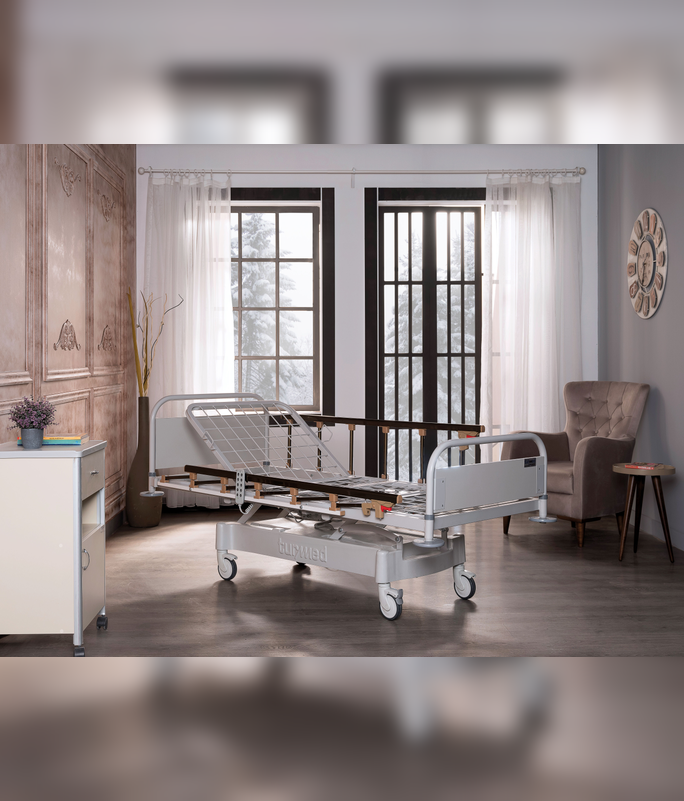

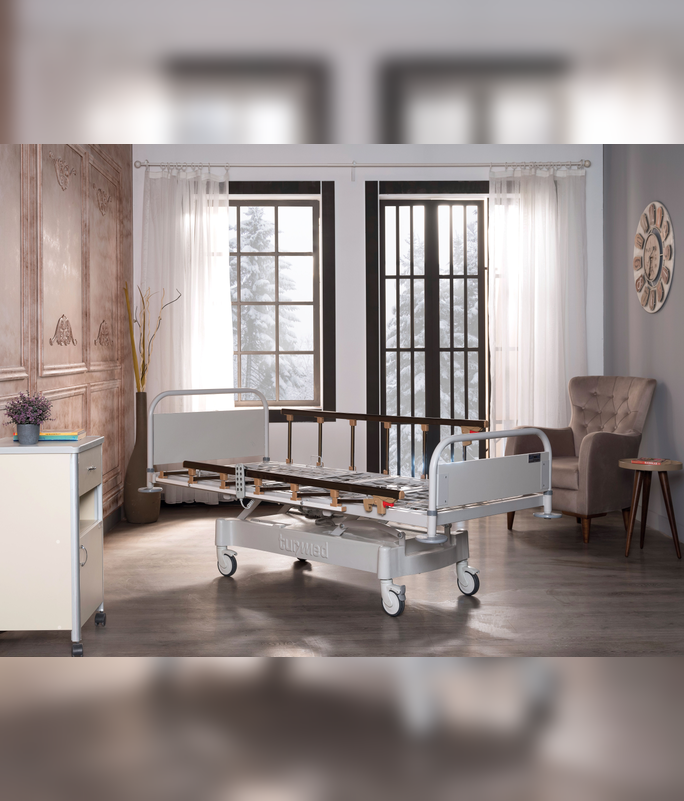

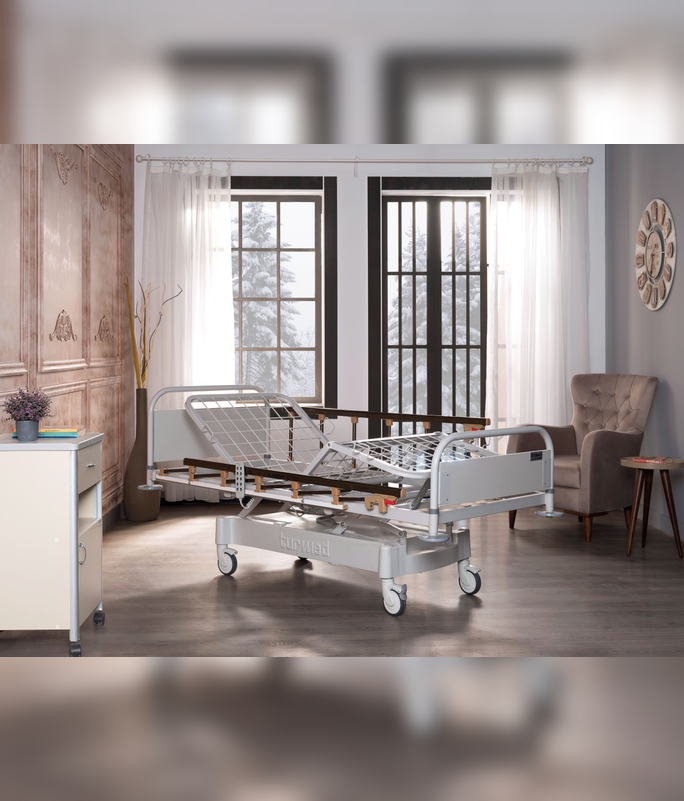

PATIENT BED (THREE MOTORS)

Product Code : TM-D 4058

TECHNICAL DOCUMENT

Product Functions

- • Height adjustment (motor)
- • Backrest adjustment. (motor)
- • Thigh rest adjustment. (motor)
- • Footrest. (manuel)

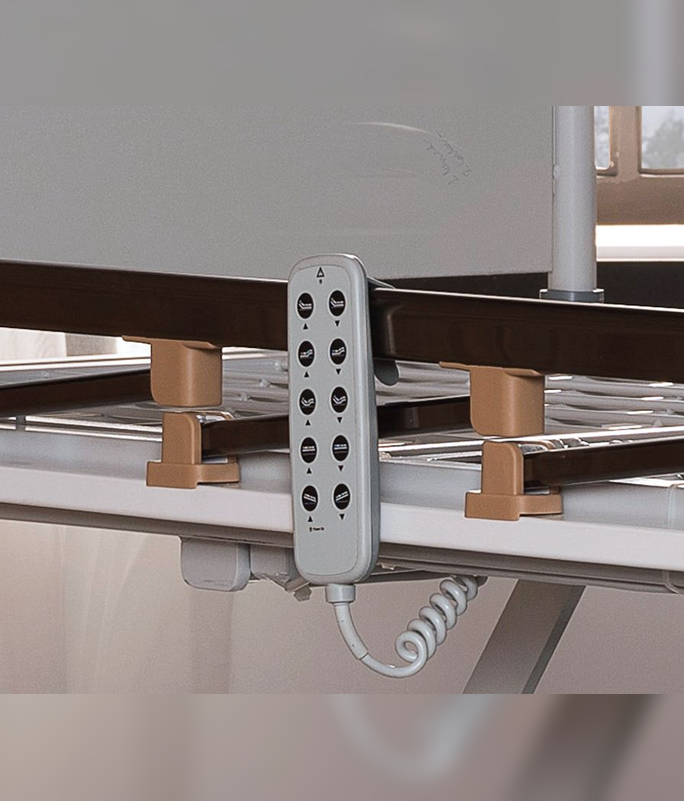

- • Handset control.
- • Wire mesh mattress platform.
- • Head and foot boards.(detachable)
- • Aluminium side rails.
- • IV pole. (height adjustable)
- • Castors two with break.
- • Protective corner bumpers.
- • Electrostatic powder coated frame. (RAL 7035)
Overall Dimensions:

1000 x 2070 mm

Bed Platform:

900 x 1900 mm

Bed Height Adjustment:

470 - 790 mm

Maximum Back Angle:

70°

Maximum Knee Angle:

40°

Side Rail Height:

320 mm

Headboard Height:

Headboard: 435 mm - Footboard: 305 mm

Under Bed Clearance:

160 mm

Wheels:

125 mm

Safe Working Load:

150 kg

Carrying (Loading) Capacity:

300 kg
- • Weight scale system.
- • Battery.
- • Handset control with magnetic lock.
- • Central lock castors.
- • Lifting pole.
- • Orthopedics traction frame.
- • Nurse control.
